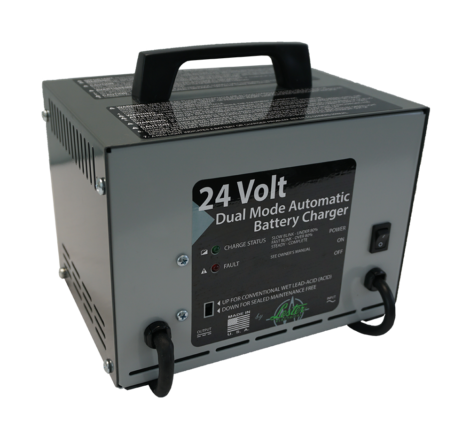

Dual Mode branded Lester Electrical Charger 18360-83-W-A

$299.99

Lester Part Number – 18360-83-W-A

This is the charger for our ProScrub floor scrubbing machine.

Dual Mode provides industry-leading charging performance and intelligence. Precise charging and termination algorithms prevent both undercharging and overcharging, optimizing both daily battery capacity and over all battery life.

Part # 153-AS-CHARGER



SKU: 153-AS-CHARGER Categories: , , ,

Description

AC INPUT

Model 18330 18360
Voltage (nominal) 120 Vac 120 Vac
Frequency (nominal) 60 Hz 60 Hz
Phase Single-phase Single-phase
Current 3 A 5 A
Protection AC breaker AC Breaker

DC OUTPUT

Model 18330 18360
Voltage (nominal) 24 Vdc 24 Vdc
Start current (nominal) 8 Vdc 12 Vdc
Battery types Wet and Sealed lead-acid

(field selectable with front panel switch)
Protection Electronic protection and DC fuse

MECHANICAL

Model 18330 18360
Dimensions (L x W x H)
(not including handle or feet)

6.5 x 8.0 x 5.5 in.
(handle add 1.25 in.)
(feet add .31 in.)

6.38 x 8.63 x 6.25 in.
(handle add 1.25 in.)
(feet add .31 in.)
Shipping Weight (approx) 18 lbs. 22 lbs.
Case material Powder-coated steel
AC cable length 8 ft.
AC connector NEMA 5-15P
DC cable length 8.5 ft.
DC connector Variety available

USER INTERFACES
Battery type selection Slide switch, front mounted
On- off Rocker switch, front mounted
Charger status indicator LED, front mounted
Fault indicator LED, front mounted
SAFETY

Agency UL listed and CSA certified (2M00)
Warranty 2 year warranty. Please see
